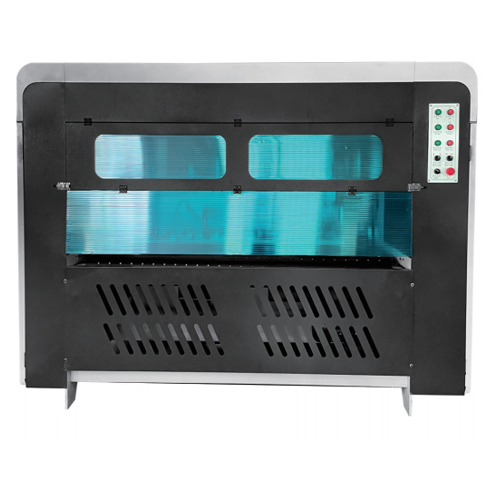

LR-ZX1600 All-in-one carton Printer
Equipment performance characteristics：Printing speed can reach 20-60 m min
- Device Model LR-ZX1600
- Quality Document TIFF BMP JPEG CDR PSD JPG
- Nozzle Type HP Sprinklers A3 A4
- Cleaning System Positive Pressure Cleaning Separate Color Switch
- Number of Printheads 1–5 pcs
- Printing Accuracy 300dpi/600dpi/900dpi/1200dpi
Product details
Performance parameters
| Device Model | LR-ZX1600 |
|---|---|
| Quality Document | TIFF, BMP, JPEG, CDR, PSD, JPG |
| Nozzle Type | HP Sprinklers A3 A4 |
| Cleaning System | Positive Pressure Cleaning, Separate Ink Pressure Control for Each Color |
| Number of Printheads | 1-5 PCS |
| Printing Resolution | 300 / 600 / 900 / 1200 dpi |
| Printing Width | 215 / 430 / 645 / 860 / 1075 mm |
| Data Interface | TCP Interface |
| Ink Type | Water-based Ink |
| Operating System | Windows 7 / Windows 8 / Windows 10 |
| Printing Color | C / M / Y / K |
| Power Supply | AC 380V, 50Hz / 60Hz |
| Lifting Function | Automatic Height Detection & Material Detection |
| Working Environment | Temperature: 15-35°C; Humidity: 20%-80% |
| Printing Thickness | 0-30 mm Adjustable |
| Power Consumption | 26 kW |
| Maximum Load Capacity | 20 kg |
| Machine Weight | 1800 kg |
| Printing Speed | Draft Mode: 60 m/min Production Mode: 30 m/min High Precision Mode: 20 m/min |
| Machine Dimensions | 3400 × 3200 × 2070 mm |
Product Details

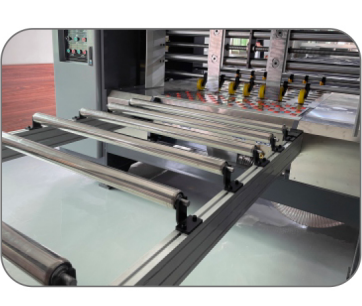

Assembly line conveyor belt

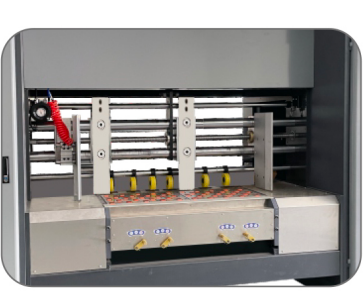

Paper Jam Positioning Frme
Automatic control system

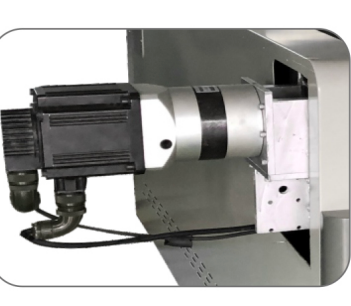

High- precision reducer

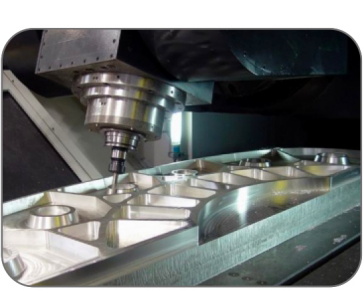

CNC precision machining
