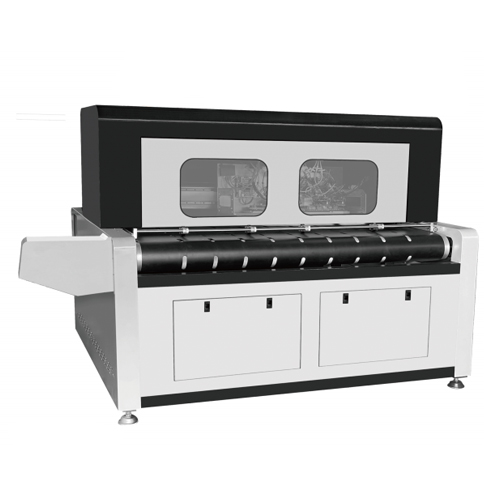

LR-ZX1800 Cardboard Plateless Digital Printing Machine

Equipment performance characteristics:Adopt HP wide industrial nozzle, the printing width of a single nozzle is 297mm, and the maximum printing width can reach 885mm;
  • Device Model LR-ZX1800
  • Printing Size 885mm
  • Nozzle Type HP Wide Format Industrial Printhead
  • Printing Resolution 1200×300dpi / 1200×600dpi / 1200×1200dpi
  • Printing Speed 20-60m/min
Online consultation
Product details Performance parameters
LR-ZX1800 Cardboard Plateless Digital Printing Machine

1. Adopt HP wide industrial nozzle, the printing width of a single nozzle is 297mm, and the maximum printing width can reach 885mm;

2. The maximum paper feeding width can reach 1600mm, which is more widely used and adapts to more specifications;

3. High-speed printing of guide-type continuous operation, 1-4 colors adjustable, printing 1200-3600 meters per hour;

4. Ultra-wide design, suitable for the uninterrupted production of aircraft boxes, cartons, paper skins, cartons, handbags, packaging boxes, express boxes, all kinds of A, B, C, E corrugated cardboard, honeycomb cardboard, kraft paper, thin wooden boards and other water-absorbing products of all materials;

5. The size can be customized according to the needs to meet the large-scale and small-scale production of different manufacturers, eliminating the tedious plate-making process;

6. It adopts quick-drying water-based environmental protection ink, which is ready to dry, and the pattern is waterproof and anti-fouling after printing.


Device ModelLR-ZX1800
Actual Printing Width885 mm
Nozzle TypeHP Wide Format Industrial Printhead
Printing Resolution1200 × 300 dpi / 1200 × 600 dpi / 1200 × 1200 dpi
Printing Speed20-60 m/min
Printing ModeOne Pass High Speed Printing
Ink ColorC / M / Y / K
Ink TypeEco-friendly Odorless Water-based Pigment Ink
Number of Printheads3 PCS
Printing HeightMaximum 140 mm
Maximum Material Width1600 mm
Feeding MethodConveyor Belt Feeding
Ink SystemDedicated 4-color Ink Cartridge System
Data InterfaceRJ45 (Gigabit Ethernet Port)
Image FormatBMP, PDF, EPS, JPEG, TIFF, CDR
Operating SystemWindows 10 x64 or Above
Power Requirement220V AC (±10%), 50Hz, 8.5 kW
Machine Weight1300 kg
Machine Dimensions2550 × 2000 × 1500 mm
Environment RequirementTemperature: 0°C - 30°C
