LR-ZX1500 All-in-one carton Printer-Shenzhen Longrun Color Printing Machinery Equipment Co., Ltd.

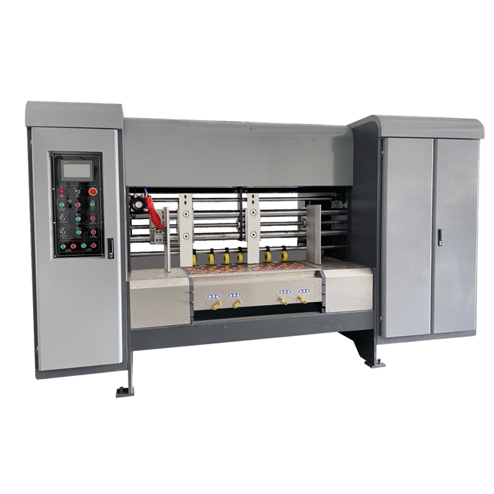

LR-ZX1500 All-in-one carton Printer

Equipment performance characteristics：Printing speed can reach 20-60m min

Device Model LR-ZX1500

Quality Document TIFF BMP JPEG CDR PSD JPG

Nozzle Type HP452 Industrial Printhead

Cleaning System Positive Pressure Cleaning with Independent Ink Pressure Control for Each Color

Number of Printheads 1–5 pcs

Print Resolution 300dpi / 600dpi / 900dpi / 1200dpi

Online consultation

Device Model	LR-ZX1500
Quality Document	TIFF, BMP, JPEG, CDR, PSD, JPG
Nozzle Type	HP-ZX452 Industrial Printhead
Cleaning System	Positive Pressure Cleaning, Separate Ink Pressure Control for Each Color
Number of Printheads	1–5 pcs
Printing Resolution	300 / 600 / 900 / 1200 dpi
Printing Width	215 / 430 / 645 / 860 / 1075 mm
Data Interface	TCP Interface
Ink Type	Water-based Ink
Operating System	Windows 7 / Windows 8 / Windows 10
Printing Color	C / M / Y / K
Power Supply	AC 380V, 50Hz / 60Hz
Lifting Function	Automatic Height Detection & Material Detection
Working Environment	Temperature: 15–35°C; Humidity: 20%–80%
Printing Thickness	0–30 mm Adjustable
Power Consumption	26 kW
Maximum Load Capacity	20 kg
Machine Weight	1800 kg
Printing Speed	Draft Mode: 60 m/min Production Mode: 30 m/min High Precision Mode: 20 m/min
Machine Dimensions	3400 × 3200 × 2070 mm
