Motor-operated telescopic locating pin
High-thrust, high-precision putter
Positioning pre-extended table positioning
After the workpiece positioning is completed, drop it below the worktable and hide it
Auto-complete location
SCOPE OF APPLICATION: Stone, tile, glass, acrylic, integrated board, wood, metal, leather, carpet, handicraft, oil painting, pvc, etc.
| Head Model | RICOH GEN5 |
|---|---|
| Printing Size | 2500 × 1300 mm (Customizable) |
| Head Quantity | 2-8 PCS (Standard 3 PCS) |
| Printing Resolution | 2880 dpi |
| Printing Color | K / C / M / Y / LC / LM / W / V |
| Media Thickness | 0-100 mm (Customizable) |
| Printing Speed | 6-48 m²/h |
| Ink System | Double Negative Pressure Ink Supply System |

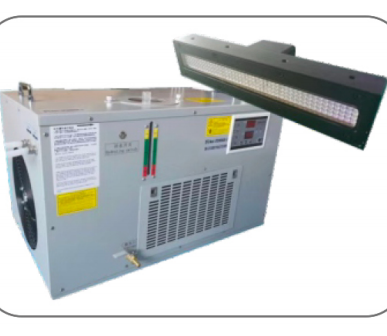

| Curing System | Water Cooled (Dual Lamp) LED Curing System |
| Power Input | AC220±10 50Hz~60Hz |
| Input Software | Monthey RIP |
| Image Format | TIFF, JPEG, AI, PS, CDR, PDF |
| Packaging Size | 4330 × 2290 × 1675 mm |
