Shoes, toilet seats, suitcases industry equipment
Dual servo motor, more stable control performance

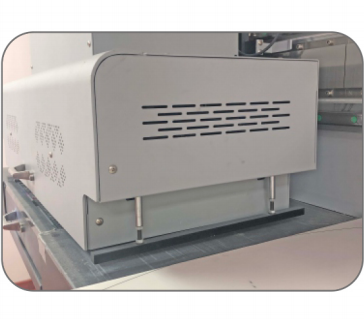

Intelligent anti-collision system of printing nozzle

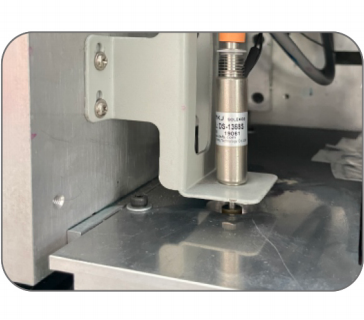

Automatic elevator head
Automatic cleaning device to prevent the nozzle from being blocked
Application industry: ceramic tiles, glass, integrated panels, wooden doors, wooden boards, metal, leather, handicrafts, oil paintings, PVC, ABS, etc.
| Head Model | RICOH GEN5 |
|---|---|
| Printing Size | 3000 × 1300 mm |
| Head Quantity | 3-16 PCS (Optional) |
| Printing Resolution | 2880 dpi |
| Printing Color | C / M / Y / K / LC / LM / W / V |
| Media Thickness | 0-100 mm (Customizable) |
| Printing Speed | 15-80 m²/h |
| Ink System | Negative Pressure Ink Supply System |
| Curing System | LED UV Lamp Curing System |
| Power Input | AC220±10 50Hz~60Hz |
| Input Software | UltraPrint RIP |
| Image Format | TIFF, JPEG, PSD, CDR etc |
| Packaging Size | 4820 × 2320 × 1675 mm |
