Seiko wood door printing custom equipment!
Print head anti-collision device system
Automatic up and down platform
Automatic cleaning device to prevent head blocking Application industry: wood door, metal door,
wardrobe door dedicated device

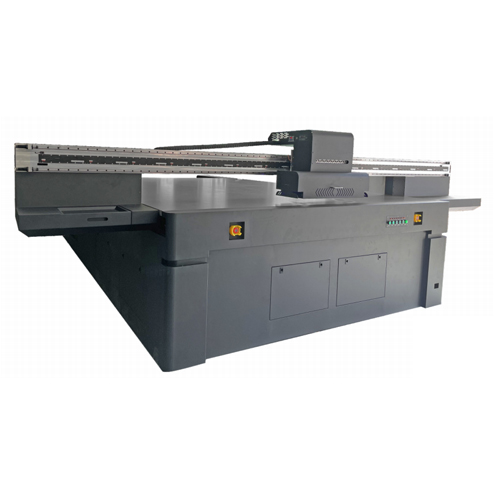

LR-UV2540 Wood Door Custom Machine
Equipment performance characteristics：New technology environmental protection wood door printing
- Head Model Seiko 1020/2160GS - Ricoh G5/G6
- Printing Size 2500mm*4000mm
- Head Quantity 4-16 PCS (Optional)
- Printing Resolution 2880dpi
- Printing Color C/M/Y/K/LC/LM/W/V
Product details
Performance parameters
| Head Model | Seiko 1020/2160GS - Ricoh G5/G6 |
|---|---|
| Printing Size | 2500 × 4000 mm |
| Head Quantity | 4-16 PCS (Optional) |
| Printing Resolution | 2880 dpi |
| Printing Color | C / M / Y / K / LC / LM / W / V |
| Media Thickness | 0-100 mm (Customizable) |
| Printing Speed | 15-72 m²/h |
| Data Interface | USB 3.0 |
| System Support | Windows 7 / Windows 8 / Windows 10 |
| Power Input | AC220±10 50Hz~60Hz |
| Input Software | UltraPrint RIP |
| Image Format | TIFF, JPEG, PSD, CDR etc |
| Curing System | LED UV Lamp Curing System |
Product Details

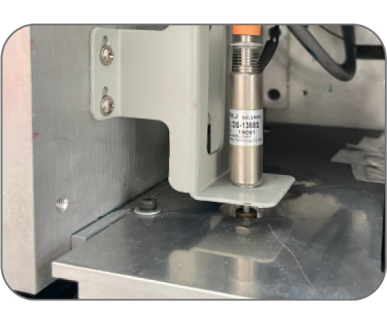

Automatic height measurement system

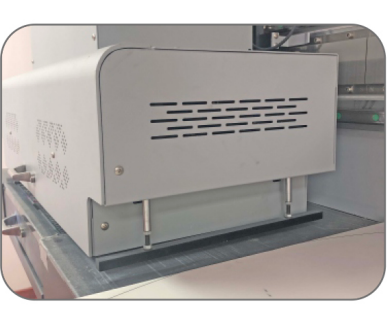

Collision Avoidance System
Automatic lifting wood door edge

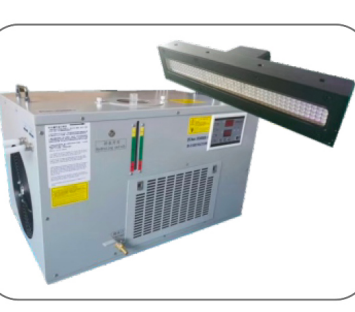

uv led curing system

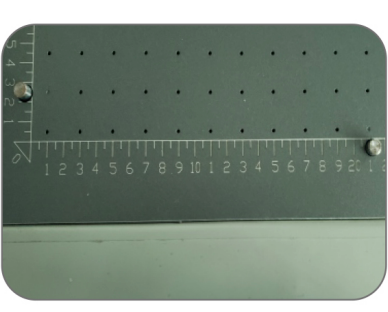

Intelligent positioning system
