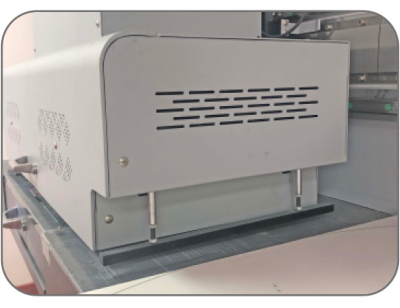

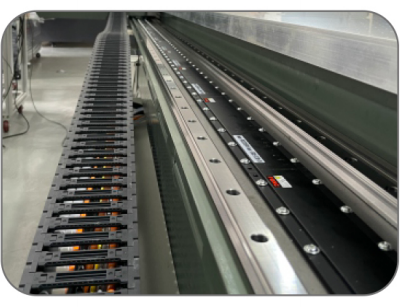

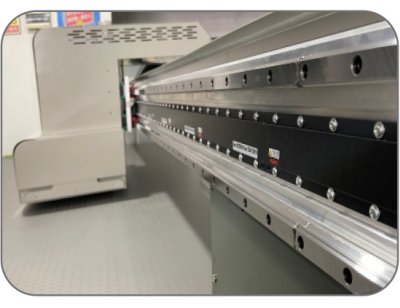

Dual Y-axis magnetic levitation linear motor Super printing area, any size materials can be printed Double servo motor, control performance is more stable Print head anti-collision device system
Automatic up and down platform
Automatic cleaning device to prevent head blocking Application industry: ceramic tile, glass, wall panel, wood door, wood panel, metal, leather, crafts, oil painting, PVC, ABS etc.
| Head Model | Seiko 1020/2160GS - Ricoh G5/G6 |
|---|---|
| Printing Size | 2500 × 6000 mm |
| Head Quantity | 4-16 PCS (Optional) |
| Printing Resolution | 2880 dpi |
| Printing Color | C / M / Y / K / LC / LM / W / V |
| Media Thickness | 0-100 mm (Customizable) |
| Printing Speed | 15-72 m²/h |
| Ink System | Negative Pressure Ink Supply System |
| Curing System | LED UV Lamp Curing System |
| Power Input | AC220±10 50Hz~60Hz |
| Input Software | UltraPrint RIP |
| Image Format | TIFF, JPEG, PSD, CDR etc |
| Packaging Size | 6500 × 2750 × 1600 mm |
